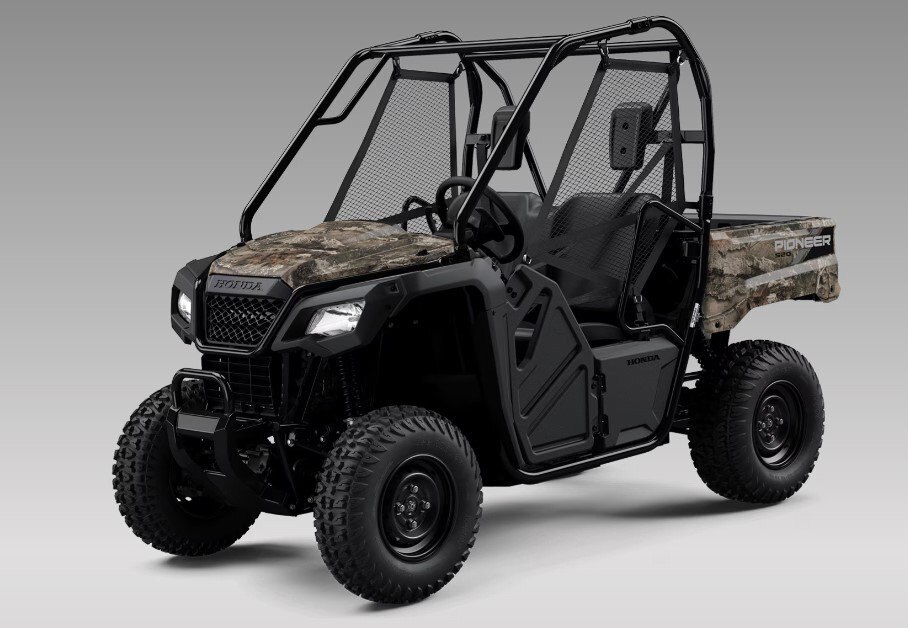

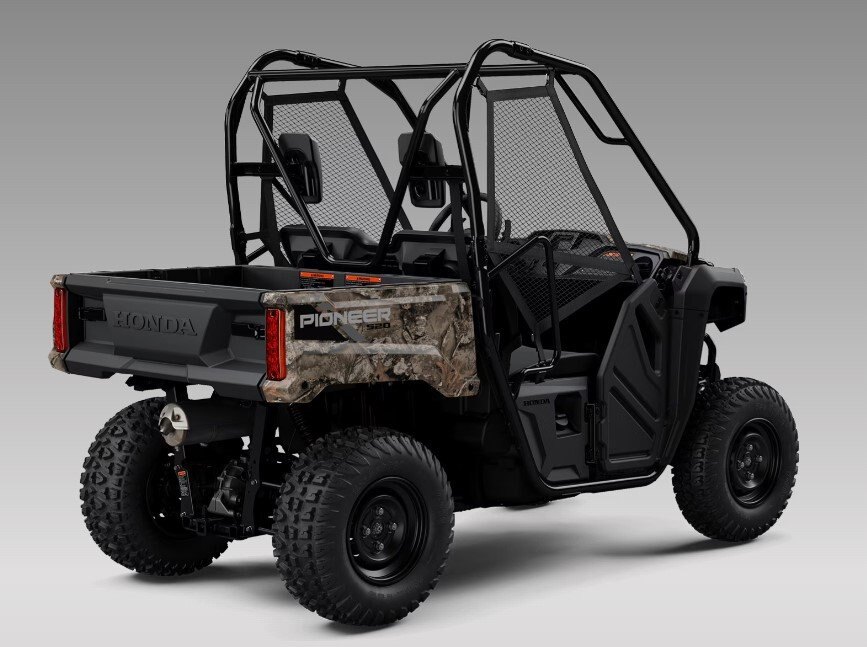

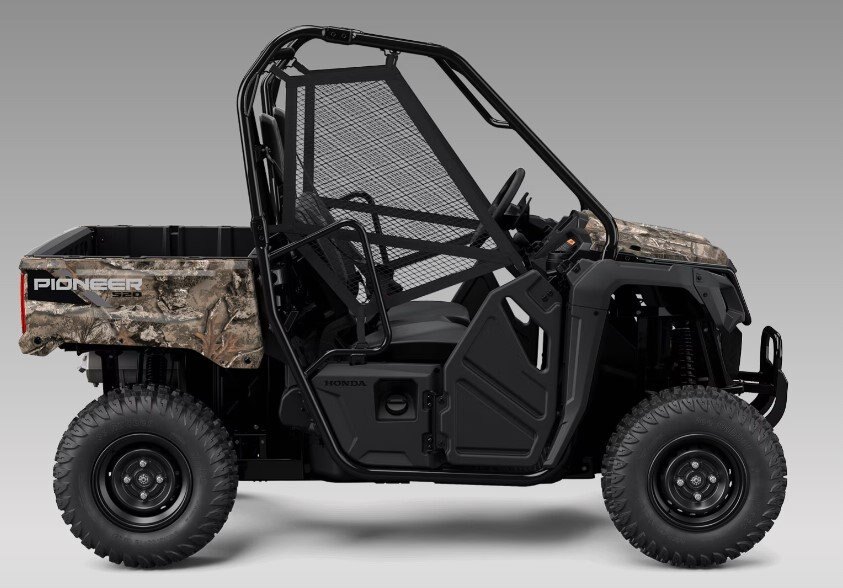

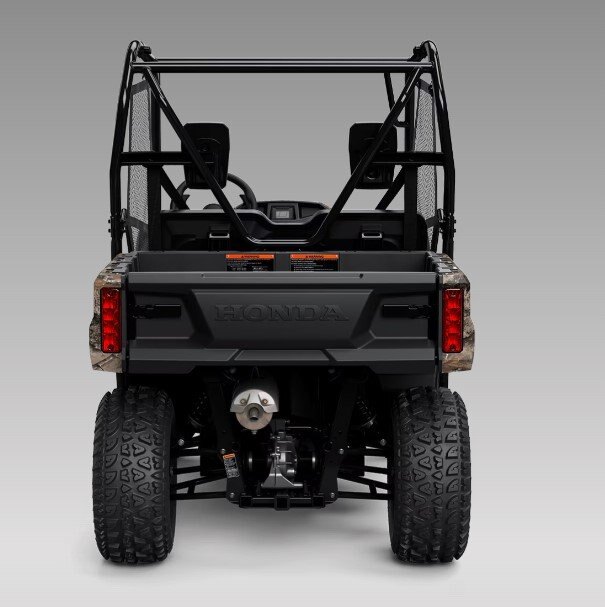

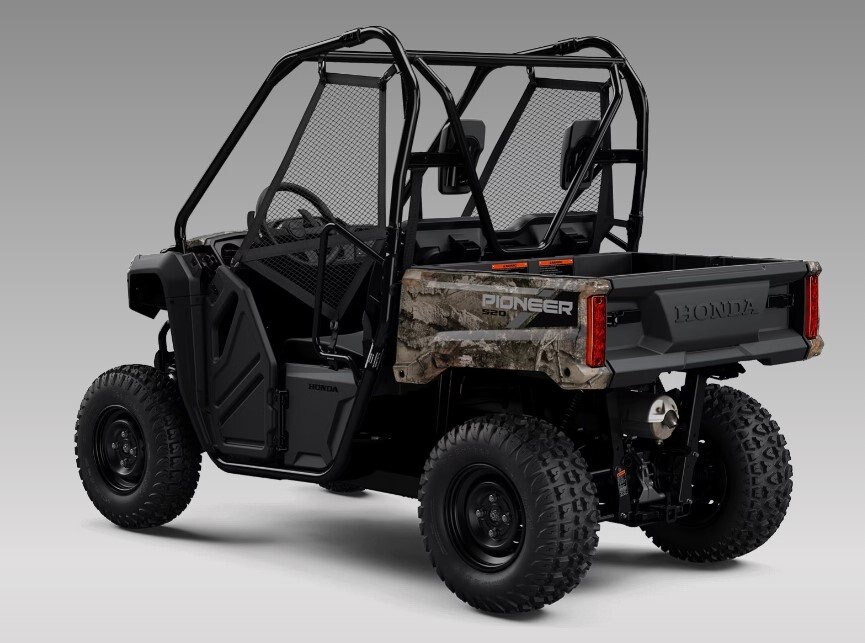

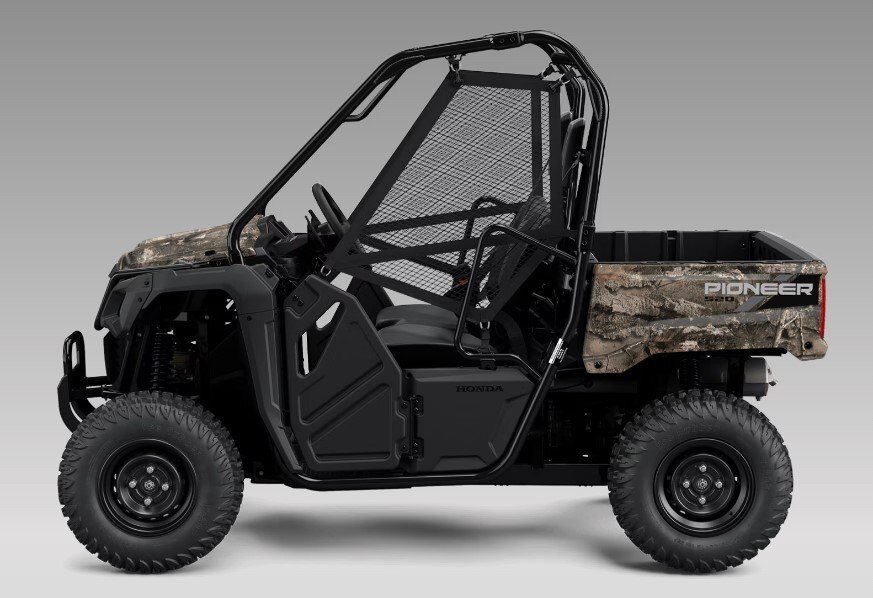

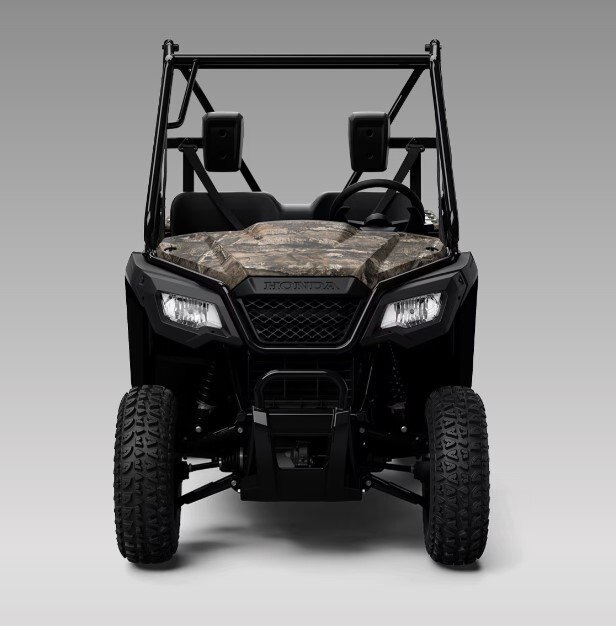

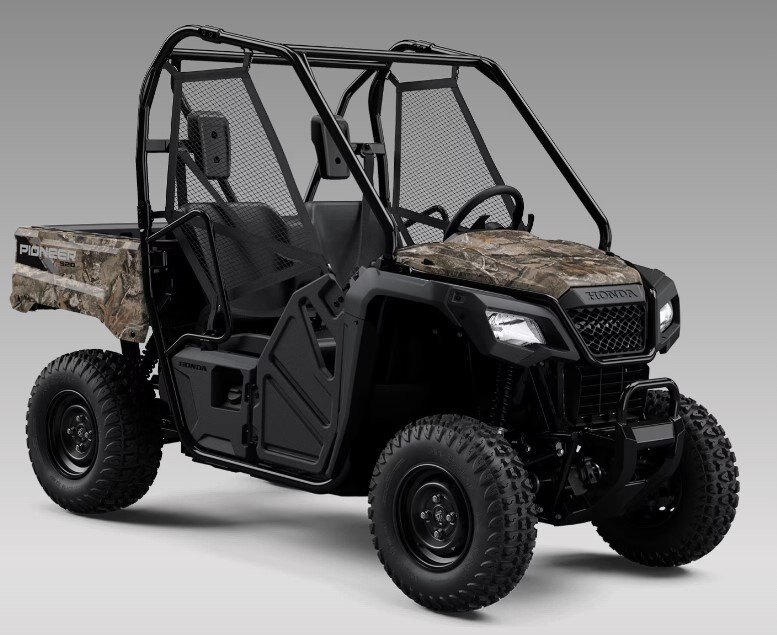

2025 Honda Pioneer 520 TrueTimber Atera Camo
Dealer Price
$17,027 CAD
Price includes all fees except hst and licensing. Rates starting as low as 2.99%.
$65.21
Weekly
72 Months. 5.99% APR $0 Down Payment
Overview
Specifications
engine
drive train
chassis suspension brakes
dimensions
other
literature
Work smarter, roam furtherThe Pioneer 520 is the Swiss Army knife of side-by-sides, combining compact agility with a mighty 518cc engine. With a 50-inch width, this mini powerhouse effortlessly navigates narrow trails, while a strut-assist tilt/dump bed, seating for two, and 1000-pound towing capacity underscore its versatility and reliability. |
|
Model
Pioneer
Category Name
UTV - Side x Side
Year
2025
Sale Type
New
Manufacturer
Honda
Color
TrueTimber Atera Camo
Warranty
Transferable, limited warranty. One year included.
Wheelbase
73.0 inches
Engine Type
518cc liquid-cooled single-cylinder four-stroke
Transmission
Five-speed automatic transmission with AT/MT modes
Rear Suspension
Independent double-wishbone with preload adjustability; 5.9-inch travel
Front Suspension
Independent double-wishbone; 5.8-inch travel
Engine
| Engine Type | 518cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 96.0mm x 71.5mm |
| Compression Ratio | 9.5:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | Electronic fuel injection (PGM-FI), 36mm throttle body |
Drive Train
| Clutch | Automatic |
|---|---|
| Transmission | Five-speed automatic transmission with AT/MT modes |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 5.8-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone with preload adjustability; 5.9-inch travel |
| Front Brake | Dual 200mm hydraulic disc |
| Rear Brake | Single 170mm hydraulic disc |
| Front Tires | 24 x 8-12 |
| Rear Tires | 24 x 10-12 |
Dimensions
| Length | 105.0 inches |
|---|---|
| Width | 50.0 inches |
| Height | 71.2 inches |
| Wheelbase | 73.0 inches |
| Bed Capacity | 450 pounds |
| Towing Capacity | 1000 pounds |
| Ground Clearance | 8.5 inches |
| Turning Radius | 12.8 feet |
| Curb Weight | 1058 pounds - Includes all standard equipment, required fluids and full tank of fuel. |
| Fuel Capacity | 4.1 gallons, including 1.1-gallon reserve |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | Hero Red, Slate Gray, TrueTimber® Atera Camo |
| Model ID | SXS520M2 |
Model
Pioneer
Category Name
UTV - Side x Side
Year
2025
Sale Type
New
Manufacturer
Honda
Quantity
0
Color
TrueTimber Atera Camo
Warranty
Transferable, limited warranty. One year included.
Wheelbase
73.0 inches
